The efficient cooling of molds is one of the most critical aspects of the injection molding process. Proper water cooling line selection not only impacts cycle times and production efficiency but also affects part quality and tooling longevity. This comprehensive guide examines the critical factors in selecting optimal water cooling lines for injection molding operations.
Understanding the Importance of Water Cooling in Injection Molding
Injection molding processes generate significant heat that must be managed effectively. Proper cooling accounts for approximately 70% of the cycle time in typical operations. The cooling system’s primary functions include:
- Removing heat from the molten plastic
- Maintaining consistent mold temperatures
- Enabling rapid solidification of the plastic part
- Preventing warping, sink marks, and other quality issues
- Protecting expensive molds from heat damage
Without effective cooling systems, production rates decrease while reject rates increase—a costly combination for any operation.

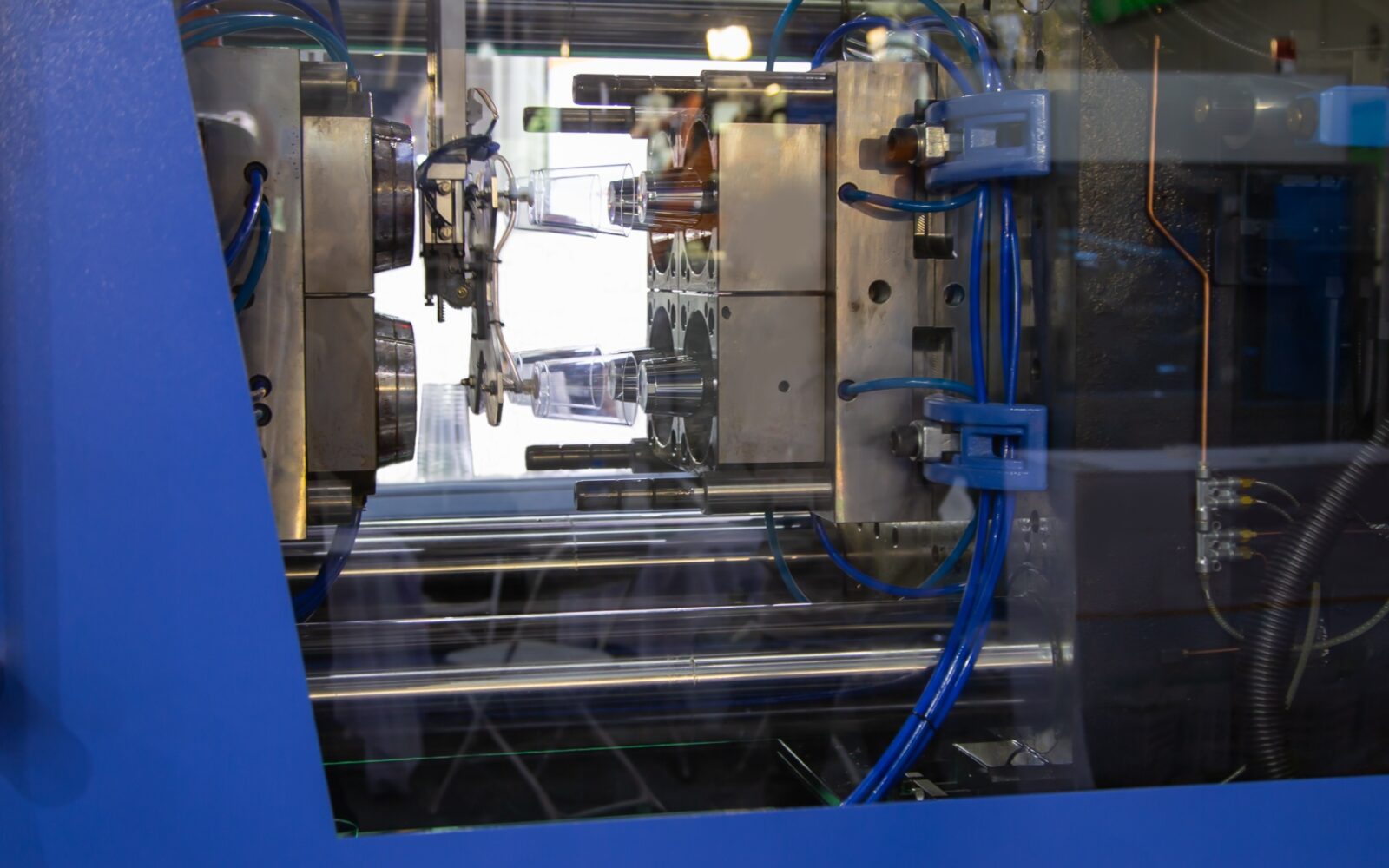

Critical Components of Injection Molding Cooling Systems
Water Lines and Hoses
A typical cooling system includes several types of water lines:
- Main supply and return lines: Larger diameter hoses that connect to the facility’s water or chiller system
- Machine connection lines: Medium diameter hoses connecting the main lines to the injection molding machine
- Mold cooling circuits: Smaller diameter hoses that connect directly to the mold
- Manifold systems: Distribution systems that split water flow between multiple cooling circuits
Common Challenges in Cooling Line Performance
Manufacturing facilities, particularly in Texas’s varied climate, face several challenges with water cooling lines:
- Scale buildup restricting flow
- Leaks at connection points
- Kinking in flexible lines
- Temperature inconsistencies
- Pressure drops across the system
- Corrosion and degradation of lines
Key Selection Criteria for Water Cooling Lines
Hose Material Construction
According to 4-STAR Hose & Supply documentation, several hose options are available for injection molding cooling applications:
Push-Lock Hose
- Available in multiple colors (red, blue, black, yellow, green)
- Allows for easy push-in installation with push-lock hose barbs
- Best for standard temperature applications
- Color coding helps with circuit identification and troubleshooting
As noted in 4-STAR’s injection molding flyer: “Push Lock hose is designed for easy push in installation with push lock hose barbs. For high pressure or high temperature applications clamping is still recommended.”
Thermoplastic Hoses
- Excellent for higher temperature applications
- Resistant to kinking
- Available with reinforcement for higher pressure applications
- Ideal for tighter routing situations around complex molds
Stainless Braided PTFE Hoses
- Superior performance in high-temperature applications
- Excellent resistance to kinking
- Longer service life in demanding environments
- Ideal for connecting to hot runner systems
Temperature Considerations
Water cooling lines must accommodate a range of temperatures:
- Standard molding: 50°F to 100°F (10°C to 38°C)
- Hot runner systems: Up to 250°F (121°C)
- Oil-based thermal systems: Up to 350°F (177°C)
For Texas-based injection molding operations, especially in warmer regions like Dallas, Houston, or San Antonio, the ambient temperature can affect cooling efficiency, requiring cooling lines with proper insulation and temperature resistance.
Pressure Requirements
Different sections of the cooling system operate at varying pressures:
- Main supply lines: Typically 60-100 PSI
- Mold circuits: Usually 30-60 PSI with pressure drops across the system
- High-efficiency systems: May operate at higher pressures for improved cooling
Select hoses with appropriate pressure ratings plus a safety factor. For critical applications, consider hoses rated at 150-250 PSI minimum.
Sizing Considerations
Proper sizing of water lines is essential for adequate flow rates:
- Main supply lines: Typically 3/4″ to 1″ for most machines
- Machine connections: Usually 1/2″ to 3/4″
- Mold cooling circuits: 3/8″ to 1/2″ depending on mold requirements
Undersized lines restrict flow and reduce cooling efficiency, while oversized lines can create pressure inconsistencies and waste water. Calculate required flow rates based on heat removal needs for optimal sizing.
Connection Options for Water Cooling Lines
Quick Disconnects
Quick disconnect couplings allow for rapid mold changes and maintenance:
- Molding couplers: Purpose-designed for injection molding applications
- Ball-lock designs: Prevent accidental disconnection during operation
- Non-spill versions: Minimize water spillage during disconnection
As 4-STAR Hose & Supply points out in their documentation: “Injection molding couplings are the staple of quick change or molds on lines without threaded or clamping connections. We partner with Dixon Valve & Coupling for the best molding couplers made in the USA in North Carolina. Don’t settle for inexpensive alternatives that can leak or wear out quickly.”
Threaded Connections
Threaded fittings provide reliable, permanent connections:
- NPT (National Pipe Thread) connections for standard applications
- Compression fittings for higher pressure applications
- Brass fittings for standard temperature applications
- Stainless steel for high-temperature or corrosive environments
Clamping Systems
For push-lock or barbed connections, proper clamping ensures leak-free operation:
- Oetiker pinch clamps for secure, low-profile connections
- Worm-drive clamps for adjustable clamping force
- Double-bolt clamps for high-pressure applications
Specialized Water Line Applications in Injection Molding
Hot Runner Systems
Hot runner systems present unique challenges for water cooling:
- Higher operating temperatures
- Tighter spacing constraints
- Need for precise temperature control
For these applications, consider:
- PTFE-lined stainless steel braided hoses
- High-temperature rated push-lock hoses with appropriate clamps
- Insulated lines to prevent heat transfer to surrounding components
Conformal Cooling
Advanced molds with conformal cooling channels require specialized connections:
- Precise alignment capabilities
- Higher pressure ratings
- Ability to maintain consistent flow rates
Maintenance Best Practices for Water Cooling Lines
Regular Inspection
Implement a schedule for cooling line inspection:
- Check for signs of abrasion or wear
- Look for bubbling or deformation indicating heat damage
- Inspect connections for leaks or corrosion
- Verify proper flow rates through visual indicators
Preventative Replacement
Avoid costly downtime with preventative maintenance:
- Replace hoses showing signs of wear before failure
- Keep common sizes and styles in inventory
- Document replacement schedules by machine and mold
- Consider 4-STAR’s OnGuard™ Asset Management program for tracking hose life cycles
As mentioned in their documentation, “OnGuard™ Asset Management helps identify and correct high risk assets. More importantly OnGuard™ Asset Management provides you with a built-in tool to move from a reactive to a proactive management process.”
Water Treatment Considerations
Water quality significantly impacts cooling line longevity:
- Use water treatments to prevent scale buildup
- Consider closed-loop systems with appropriate additives
- Install filtration systems to remove particulates
- Monitor pH and mineral content regularly
Cost vs. Performance Considerations
When selecting water cooling lines, consider both initial and long-term costs:
Initial Investment
- Higher quality hoses and connections have higher upfront costs
- Premium materials like PTFE and stainless steel cost more initially
- Quick-disconnect systems add to initial setup costs
Long-term Value
- Higher quality components typically offer longer service life
- Reduced downtime from fewer failures provides substantial ROI
- Improved part quality reduces scrap rates
- Faster cycle times from efficient cooling increases productivity
Conclusion
Selecting the right water cooling lines for injection molding operations requires careful consideration of temperature requirements, pressure ratings, connection types, and maintenance needs. For injection molding operations across Texas—from the manufacturing hubs of Dallas-Fort Worth to specialized operations in Houston and San Antonio—proper cooling line selection directly impacts productivity and part quality.
By partnering with experienced suppliers who understand the unique requirements of injection molding cooling systems, manufacturers can optimize their operations for efficiency, reliability, and quality. 4-STAR Hose & Supply offers a comprehensive range of water cooling line solutions, from standard push-lock hoses to specialized high-temperature applications, all backed by industry expertise to help you select the right products for your specific molding requirements.
Remember that proper water cooling line selection is not just about preventing problems—it’s about creating opportunities for improved cycle times, better part quality, and ultimately, enhanced profitability for your injection molding operation.
