In food processing plants, breweries, dairy facilities, meat processing operations, and other sanitation-critical environments throughout Texas, effective washdown systems are essential for maintaining cleanliness, food safety compliance, and operational efficiency. These systems, while seemingly straightforward, require careful component selection, proper setup, and consistent maintenance to ensure they perform effectively without creating safety hazards or excessive operational costs.
At 4-STAR Hose & Supply, we’ve supplied washdown equipment to industrial facilities across Dallas, Fort Worth, Cleburne, Midland, Pleasanton, and throughout Texas for decades. This comprehensive guide explores the essential components of effective washdown systems, selection criteria, and best practices for installation and maintenance.
Understanding Washdown Systems
Washdown systems provide pressurized water or cleaning solutions for removing contaminants from equipment, floors, walls, and other surfaces in processing environments. While applications vary widely, most washdown systems share common components and operational principles.
Core Components of Washdown Systems
1. Steam and Water Mixing Stations
The heart of most hot water washdown systems is the mixing station that combines steam and cold water to create hot water at the desired temperature. As noted in our product documentation, 4-STAR offers mixing stations engineered to:
- Produce instant hot water from steady steam and cold water supplies
- Allow temperature regulation through adjustment of steam and cold-water valves
- Feature specially designed blending chambers for even mixing
- Include safety features like automatic steam shut-off if cold water supply is interrupted
Thermostatically controlled units provide additional precision with dial-type gauges that accurately indicate wash water temperature.
2. Washdown Hoses
Purpose-built washdown hoses are designed to handle the unique demands of cleaning operations, including:
- High temperature resistance (typically up to 200°F for standard hoses)
- Pressure capacity (usually 150-250 PSI working pressure)
- Cover compounds that resist oils, fats, cleaning chemicals, and abrasion
- Flexibility for operator handling in tight spaces
4-STAR offers multiple washdown hose variants, including:
- Premium white wrapped impression cover hoses with chlorobutyl tubes
- Extruded cover hoses with nitrile tubes and covers for oil resistance
- EPDM construction for excellent heat resistance (up to 220°F)
- Color options including white, black, red, yellow, and blue for area or application designation
The right hose selection depends on specific application requirements, especially regarding temperature, chemical exposure, and handling needs.

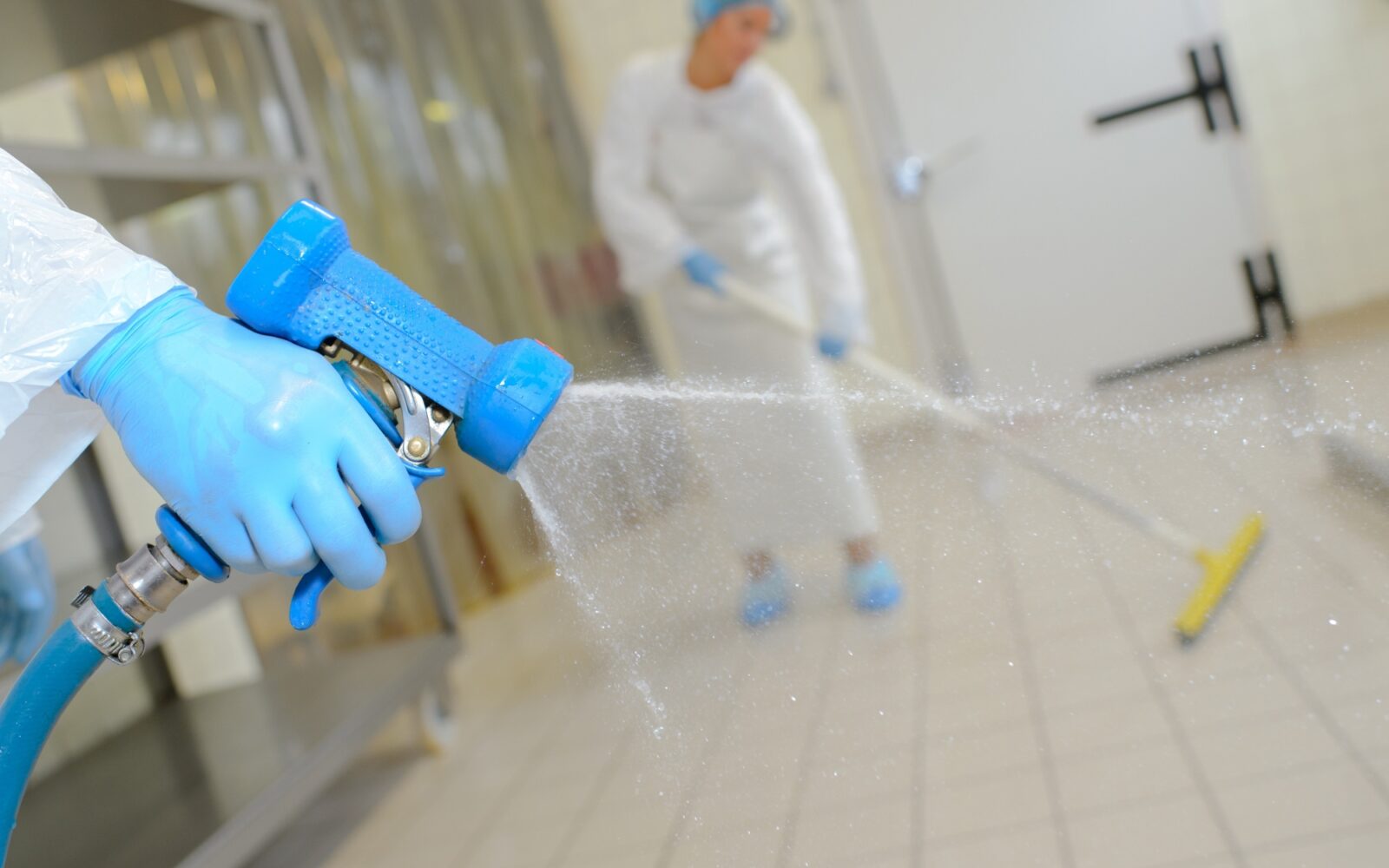

3. Spray Nozzles
Completing the washdown system, spray nozzles direct water where needed and control flow patterns. Quality nozzles feature:
- Variable spray patterns from soft spray to solid stream
- Rear-mounted levers for ergonomic operation
- Heavy-duty materials (bronze or stainless steel) for durability
- Rubber covers to prevent damage from drops and provide heat insulation
- Drip-tight shutoff when the lever is released
As our product documentation indicates, 4-STAR’s premium nozzles are engineered for industrial food processing environments with maximum operating temperatures up to 200°F and pressure ratings of 150 PSI.
4. Accessory Components
Complete washdown systems include various additional components:
- Hose racks or hooks for proper storage between uses
- Swivel connectors to prevent hose kinking during use
- Insulated handles for operator comfort and safety
- Pressure regulators to ensure appropriate cleaning pressure
- Backflow preventers to protect water supplies
Selection Criteria for Washdown Systems
Choosing the right components for your washdown system requires careful consideration of several factors:
Temperature Requirements
Different processing environments have varying temperature needs:
- Dairy operations typically require temperatures between 145-160°F
- Meat processing often needs higher temperatures of 165-180°F for fat removal
- General food processing usually operates in the 140-160°F range
- Breweries often use lower temperatures (120-140°F) with specialized cleaning chemicals
The mixing station selected must be capable of consistently delivering water at these temperatures, with appropriate safety margins.
Pressure Considerations
Effective cleaning requires adequate pressure without causing equipment damage:
- Most food processing applications require 50-100 PSI for effective cleaning
- Heavy soil removal might need up to 150 PSI
- Delicate equipment may require lower pressures of 30-50 PSI
- Flow rates typically range from 3-12 GPM depending on the application
Your specific cleaning requirements should determine the pressure and flow specifications for your system.
Material Compatibility
The materials used in washdown components must be compatible with:
- Cleaning chemicals and sanitizers used in your facility
- Food products being processed
- Environmental conditions (temperature extremes, humidity levels)
- Regulatory requirements for your industry
For food processing applications, stainless steel fittings and food-grade hose materials are typically required to meet FDA and USDA standards.
Ergonomics and Safety
Operator comfort and safety significantly impact cleaning effectiveness:
- Hose weight and flexibility affect operator fatigue
- Nozzle design influences hand strain during extended use
- Steam mixing stations must include appropriate safety features
- Hose length should be appropriate for the cleaning area without excess
These human factors are often overlooked but play a crucial role in cleaning effectiveness and worker safety.
Installation Best Practices
Proper installation of washdown systems is critical for safety, efficiency, and longevity:
Mixing Station Installation
- Mount mixing stations securely to walls or posts at appropriate heights (typically 4-5 feet above floor level)
- Ensure adequate steam supply with proper pressure (usually 15-80 PSI)
- Provide consistent cold water supply with appropriate pressure (typically 20-80 PSI)
- Install pressure gauges for both inputs to facilitate troubleshooting
- Position stations strategically throughout the facility to minimize hose length requirements
Hose Management
- Install hose racks or reels to prevent floor contact when not in use
- Use swivel fittings at connection points to reduce twisting
- Provide sufficient hose length for the intended cleaning area without excess
- Consider color-coding hoses for different zones or applications
- Implement proper strain relief at connection points
Safety Systems
- Install emergency shutoff valves in accessible locations
- Ensure proper drainage in washdown areas to prevent standing water
- Post temperature and pressure specifications near each station
- Consider thermostatic mixing valves for additional temperature control
- Implement lockout procedures for maintenance
Maintenance and Inspection Routines
Regular maintenance extends equipment life and ensures safe operation:
Daily Checks
- Inspect hoses for visible damage, kinks, or leaks
- Check nozzle operation for proper spray patterns
- Verify mixing station temperature and pressure output
- Ensure all safety features are functioning correctly
- Properly store hoses after use
Weekly Maintenance
- Test steam trap operation on mixing stations
- Inspect all fittings for leaks or corrosion
- Check hose condition more thoroughly, including end fittings
- Clean nozzle screens if applicable
- Verify temperature gauge accuracy
Monthly Procedures
- Conduct pressure testing of complete system
- Inspect mixing station internal components
- Check steam supply system integrity
- Review documentation for compliance requirements
- Perform preventive replacement of wearing components
Quarterly Service
- Complete teardown inspection of mixing stations
- Replace gaskets and seals as needed
- Conduct calibration of temperature and pressure gauges
- Evaluate system efficiency and performance
- Update maintenance records and certification documentation
Troubleshooting Common Issues
Even well-maintained washdown systems can develop problems. Here’s how to address common issues:
Temperature Inconsistencies
- Check steam supply pressure and temperature
- Inspect mixing valve for scale buildup or damage
- Verify cold water supply temperature and pressure
- Examine thermostatic control function
- Look for partially blocked strainers
Pressure Problems
- Check for kinked or restricted hoses
- Inspect nozzle for blockage or wear
- Verify mixing station pressure settings
- Examine input supply pressures
- Check for system leaks
Leaking Components
- Inspect hose covers for damage allowing seepage
- Check fitting connections for proper tightening
- Examine gaskets and seals for wear or damage
- Look for cracked components due to thermal cycling
- Verify appropriate thread sealants are used
Regulatory Considerations
Washdown systems in food processing environments must comply with various regulations:
- FDA requirements for food-contact materials
- USDA standards for sanitation procedures
- OSHA guidelines for worker safety with hot water and steam
- Local health department regulations for food processing
- Industry-specific standards like 3-A Dairy or brewing association guidelines
4-STAR Hose & Supply provides components that meet these regulatory requirements for food processing applications.
Conclusion: The 4-STAR Advantage
Effective washdown systems result from careful component selection, proper installation, and consistent maintenance. At 4-STAR Hose & Supply, we offer:
- Expert consultation to help determine the optimal system configuration
- Quality components from leading manufacturers
- Custom hose assemblies built to your specifications
- Extensive inventory for quick replacement of worn components
- Technical support for installation and troubleshooting
With locations serving Dallas, Fort Worth, Cleburne, Midland, and Pleasanton, our team provides the expertise and products needed to maintain effective, efficient washdown operations throughout Texas.
For assistance with selecting, installing, or maintaining washdown systems for your facility, contact 4-STAR Hose & Supply at (800) 421-5519 or visit www.4starhose.com. Our specialists can help you design a system that meets your specific cleaning requirements while maximizing safety and operational efficiency.
